r20

随处创建

更多集成、改进的工作流、多种本地语言

下载 r20

建造: 84148 (获释 十二月 01 2021)

任何国家,任何项目,一个工作流

借助r20,您可以使用本地语言工作,并与世界各地的同行一起给最复杂的项目找到解决方案。利用改进的工作流和与大多数领先技术的集成。

对于那些正在寻求多一点确定性的人,请利用我们覆盖全球的高级支持和保修。了解为什么这个版本对您的下一个产品至关重要。

下载r20

现在有6种新语言

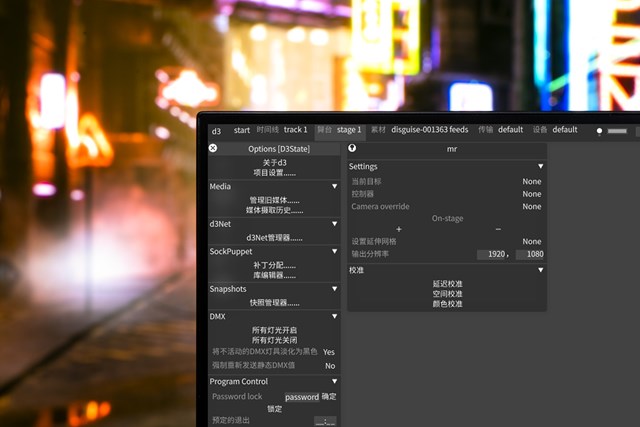

用您的本地语言工作!Designer软件、培训材料和用户指南现在又增加了6种语言版本:西班牙语、简体中文、法语、日语、德语和韩语。一旦您下载了r20,软件会自动建议您的系统语言,但您可以随时改回英文。

R20 News Story Body Image Chinese Disguise
Partners R20 Downloadpage Imagestretch Disguise

在您的国家与disguise合作

我们的社区是我们所做的一切工作的核心。成为合作伙伴或从200多个disguise合作伙伴中找到完美的工作室、工作流专家或租赁提供商。

您现在还可以在更多地点找到我们:除了我们位于伦敦的总部和位于纽约、洛杉矶、巴塞罗那、迪拜、香港、上海、东京和奥克兰的办事处之外,您现在还可以访问在北京和首尔的disguise。我们的团队可以向您介绍我们的最新产品,回答技术问题,并为您提供最适合的系统设置建议。

适用于任何创作的新工作流

作为r20的一部分,我们加入了多个精彩的新功能,可加快您在Designer上给内容添加处理的速度。此外,我们还增加了全新的空间校准工作流,可让您节省人力,提高工作效率。滚动到本页底部,可查看所有新功能及其工作原理!

Features R20 Downloadpage Imagestretch Disguise
Workflows R20 Downloadpage Imagestretch Disguise (1)

70多个自动化集成

集成是任何系统设置成功的关键,因此,我们在开发平台时,以与最常用的解决方案完美地集成为目标。从音频和视频到照明、摄像机和运动跟踪,disguise平台可自动执行所有主要的软件、硬件和服务集成,以便您可以专注于创作最佳作品。

随着我们近期对Mapping Matter和Previz的收购,我们正在协同和云计算领域进行激动人心的新集成。敬请关注未来几个月推出的新功能!

演出将继续

有些项目需要多一点保证,我们在现场音乐行业拥有20余年的经验,给客户提供关键支持是我们工作的核心。我们全天候的优质支持覆盖世界各地,确保您的创作不会错过任何节拍。延长保修期限并升级到全球保修,可在发生任何意外时获得替换机器和硬件支持。

Premiumsupport R20 Downloadpage Imagestretch Disguise

特色

全新的经过改进的添加处理的方法

关键帧切换

使用关键帧切换,您可以清理时间线上的序列,并通过简单地打开和关闭时间线关键帧来实现快速迭代。

全新的与时间无关的层栈

有了全新的与时间无关的层栈,您可以方便地管理实时视频输入中的处理层。应用彩色外观和彩色抠像器,添加输入变换、视频叠加、遮罩或风格效果。完成后,您可以堆叠、合成和排序效果。

特色

全新的空间校准工作流

AR校准

我们添加了一个工作流,无需LED墙即可校准AR对象。基于您已知的快速对齐工作流,您可以轻松精确地校准增强现实对象。

校准API

此外,我们添加了校准API。构建了外部工作流后,您可以轻松集成xR校准并节省空间校准过程中的人力。远程运行观察,在进行过程中进行优化,使用切换功能以方便比较和测试。

还有一件事情:借助比例因子,占用更少的带宽



比例因子与平台无关,它可使您控制网络带宽。渲染一小部分内容,同时仍可确保高分辨率内容。

r20版本说明

r20中的改进、修复和已知问题。如需当地语言支持,请发送电子邮件至support@disguise.one。
New Features
  • DSOF-17200 - Localisation of d3
  • DSOF-15795 - xR Spatial Calibration API
  • DSOF-13834- Layer Stack
  • DSOF-15798 - MR Set API
  • DSOF-12715 - Manual AR calibration tool



Improvements
  • DSOF-18536 - Automatic keyframe icon now represented as a clock
  • DSOF-18530 - Luma Keying now has an option to use inverted matte
  • DSOF-18529 - Stage render option in manual observation calibrator window
  • DSOF-18528 - Added 'Registration + Focal Length' spatial calibration option
  • DSOF-18523 - Added support for multiple keyboard layouts
  • DSOF-18419 - Allow force quitting of workloads via d3manager
  • DSOF-18368 - Add support for object motion blur through RenderStream Channel Definition component on UE projects
  • DSOF-18270 - Added the ability to map key and fill as a single video input
  • DSOF-18262 - Added the concept of green screens and made a new screen type - Green Screen
  • DSOF-18216 - Licensing: Better reflect why an automatic shutdown has been initiated
  • DSOF-18206 - Users can now view stream performance across all machines instead of just the local one
  • DSOF-18172 - Removed "developer-evaluation" option for non-encrypted builds
  • DSOF-18160 - Rewrite LogicalVideoIn as BufferedLogicalVideoInComposition
  • DSOF-18147 - Remove unnecessary wstrings and related conversions
  • DSOF-18146 - Added a tool tip for preferred network in cluster assigner
  • DSOF-18144 - Spatial calibration can be selected as a resource from camera
  • DSOF-18143 - d3manager reports deprecated licenses correctly
  • DSOF-18126 - Added composite camera tracking source that allows combining lens data and position data from different drivers
  • DSOF-18111 - Decouple Renderstream functionality from projection policy
  • DSOF-18097 - Added HDRColour colour box/picker
  • DSOF-18088 - Show colour picker for all layers' colour fields
  • DSOF-18085 - Localisation: added the ability to set language in d3 manager
  • DSOF-18083 - Changed d3 font to Noto sans
  • DSOF-18077 - Added Layer Stack arrow support
  • DSOF-18076 - Added a shortcut for users to type in any notes into console to help with troubleshooting
  • DSOF-18073 - Allow layer to overwrite alpha without any blending
  • DSOF-18072 - VideoInTexture: return latest raw image if layer stack is referencing self
  • DSOF-18071 - Only show supported effects in the Layer Stack effects picker
  • DSOF-18070 - Notch: support effect inputs
  • DSOF-18055 - d3 will now exit with an appropriate message if a deprecated license is found
  • DSOF-18036 - LayerStack: support non-graphical control layers
  • DSOF-18029 - Diagnostics: tores crash information from Unreal projects when creating system diagnostic
  • DSOF-18023 - Added the ability to genlock to input signals that are a fraction of the refresh rate on systems with an AMD GPU
  • DSOF-18013 - d3licensecheck: license rows indicate support for current d3 version
  • DSOF-18006 - Fields which need alpha-numeric inputs are now flagged
  • DSOF-18000 - Improved legibility of Chinese/Japanese characters
  • DSOF-17992 - Max tile size in cluster assigner is now more specific
  • DSOF-17990 - Renamed Master layer to MasterBrightness
  • DSOF-17987 - RenderStream: added no-sequence flag to remote parameters schema
  • DSOF-17984 - RenderStream: host memory image parameters now supported
  • DSOF-17979 - Added the option to remove 'missing' RenderStream machines
  • DSOF-17964 - Added a button to find and list all usages of a VideoClip, Notch block or AudioTrack
  • DSOF-17938 - Effects in a Layer Stack can be disabled (Mute) or solo'd (Isolate)
  • DSOF-17823 - When renderstream licence expires, d3 manager now says "expired"
  • DSOF-17796 - RenderStream: Added support for OpenGL textures
  • DSOF-17675 - Improved Tooltips for Tracker distortion compensation
  • DSOF-17621 - VideoInTexture: bypass video layer and use texture video inputs directly
  • DSOF-17533 - Users are now able to decide to skip waiting on actors on startup
  • DSOF-17384 - Refresh d3manager UI to reflect network adapter changes
  • DSOF-16850 - Prompt user when RenderStream license is near expiration date.
  • DSOF-16719 - Auto-update CodeMeter Time Certificates during installation
  • DSOF-14340 - Remote install of d3 on an rx, via d3 manager will kill applications that use RenderStream
  • DSOF-12568 - Notch: list of layer sources update properly
  • DSOF-10530 - Media Ingestion History - Change import date from UTC to local time.
  • DSOF-8893 - Added the ability to clip outside of projection mapping effective area
  • DSOF-2384 - Support for AZERTY keyboard layout
  • DSOF-3402 - Click and drag to adjust values on GUI fields
  • DSOF-744 - Layer fields are now optionally keyframeable
  • DSOF-18162 - Improved performance of rendering multiple MR components
  • DSOF-18141 - RenderStream: clarified DMX fields in API
  • DSOF-18048 - RenderStream: add a viewport id/handle to stream description
  • DSOF-18047 - RenderStream: added graceful shutdown
  • DSOF-17183 - OmniCal: Improve performance of projector devices
  • DSOF-15284 - Added reusable Layer Stack Evaluator class for in-line user definable compositions



Fixes
  • DSOF-18917 - Fixed an issue where composite tracking camera source only allowed axisCameraTrackingSource and compositieCameraTrackingSource as selections
  • DSOF-18789 - Fixed an issue where the stage render layer didn’t render virtual frontplate screen on the 1st frame of the camera switch
  • DSOF-18710 Fixed the error 'Invalid cast' when attempting to open Output / VFC Slot widget
  • DSOF-18665 - Fixed an issue where window size grows by the number of nodes when disableUnrealConfigUpdate is enabled
  • DSOF-18639 - Ensured 'Force quit RenderStream applications remotely' does not quit d3.exe
  • DSOF-18628 - Fixed an issue with 'Registration + focal length' alignment
  • DSOF-18626 - Fixed stage render layer not accounting for virtual zoom
  • DSOF-18623 - Fixed an issue where the Installer throws "unsupported license error" about unrelated Stage Precision licences
  • DSOF-18594 - Fixed an issue where a white outline appears around keyframe icon at certain DPI settings
  • DSOF-18581 - Fixed an infrequent d3service crash if you have dot-folders in your Renderstream Projects folder
  • DSOF-18579 - Fixed Render nodes showing as "Idle" in d3manager when a workload is running
  • DSOF-18552 - Fixed the observation debugger
  • DSOF-18534 - Fixed an issue where projector " include/exclude" Dynamic blend option would only give the "exclude" result
  • DSOF-18520 - Fixed Virtual Cameras not working as Video Inputs
  • DSOF-18499 - Fixed System Time and CodeMeter time falling out of sync as a result of updated polling rate
  • DSOF-18491 - Fixed the Hostname column in d3net status widget
  • DSOF-18489 - Fixed LightwareMatrixLW3 UBEX device support
  • DSOF-18465 - API: Fixed an issue where specifying a body cleared all non-body message fields
  • DSOF-18388 - Fixed an Access Violation calling listVideoClips API
  • DSOF-18384 - Fixed an issue found when duplicating cameras, the spatial calibration was shared between the original and duplicate.
  • DSOF-18330 - Fixed an access Violation when changing Editor to an Actor
  • DSOF-18322 - Provide better user feedback for "failed with init layer" error
  • DSOF-18320 - Prevented telemetry filling up the OS drive on servers
  • DSOF-18318 - Fixed 'Incorrect number of arguments to call' error when exporting FBX and OBJ files
  • DSOF-18301 - Fixed a bounds-check error when attempting to open layer type selection widget multiple times
  • DSOF-18299 - API: fixed a failure to parse JSON data if route contains certain characters
  • DSOF-18282 - Fixed ‘m_versionCallCount’ error on a blank project
  • DSOF-18267 - XR: Fixed a no attribute error when attempting to perform any action within MR Set
  • DSOF-18257 - Fixed an issue where you could not change layer field values when playing and keyframing are disabled
  • DSOF-18252 - Fixed an issue where delaying calibration didn't show captured frames
  • DSOF-18227 - Fixed 'NoneType' errors seen when attempting to run Spatial calibration actions on unassigned SpatialCalibrationConfig
  • DSOF-18226 - Fixed an Access Violation when opening Observation Debugger widget of unassigned SpatialCalibrationConfig with 1+ observation
  • DSOF-18207 - Fixed Virtual camera reprojections having a black line around reprojection plane
  • DSOF-18203 - RenderStream: Fixed an issue where it was possible to set mapping to 'None' with DMX
  • DSOF-18197 - Fixed an Access Violation when attempting to use quick select hotkeys without resource widget open
  • DSOF-18189 - Implemented a fix for incorrect alpha blending when lens distortion is applied to a camera
  • DSOF-18184 - Improved Local Notch xr performance
  • DSOF-18175 - Fixed an issue where System Diagnostic failed if RenderStream projects folder not set
  • DSOF-18174 - Notch: Fixed a ReflectionValue error when arrowing into a Notch layer
  • DSOF-18169 - Fixed an issue where camera compositing wasn't let through videoin transparency
  • DSOF-18161 - Fixed an issue where fields marked as Not-Sequencable in RS still have a circle to click on
  • DSOF-18156 - Fixed CameraTrackerTester Tracking Delay having no effect
  • DSOF-18152 - Fixed an issue where media ingestion history could not be opened
  • DSOF-18133 - Fixed object labels not being rendered on screen
  • DSOF-18108 - AssetLauncher: Fixed custom extensions launched using default windows application not getting environment
  • DSOF-18095 - RenderStream: Fixed being unable to failover machine if engine has crashed
  • DSOF-18094 - Fixed fullscreen notification text being misaligned
  • DSOF-18093 - Fixed an 'argument index out of range' error when attempting to open Rollback or Import widgets
  • DSOF-18078 - Fixed Widget text appearing too large and rendering behind frames
  • DSOF-18054 - Fixed a path conflict when upgrading to DirectProjection
  • DSOF-18037 - Unreal: use custom launch target when specified
  • DSOF-18035 - Fixed feed rect masks not being clamped to 0-1, creating brighter images when source is > 1
  • DSOF-18034 - Fixed control points not outputting when added in composite texture
  • DSOF-17988 - Fixed texture parameters not working between vx2 and rx machines
  • DSOF-17981 - Fixed an issue with the ACES colour management widget being sticky and cannot be disabled
  • DSOF-17978 - Fixed being unable to select "None" in frame of reference fields
  • DSOF-17969 - RenderStream: Fixed an issue where scenes could no longer read on Director if opened on an Editor
  • DSOF-17955 - Fixed an exception on shutdown when Uncompressed stream active
  • DSOF-17954 - Fixed an issue where render passes were being done without a valid depth behaviour set
  • DSOF-17952 - RenderStream: Fixed being unable to reconfigure running Unity/Notch workloads
  • DSOF-17942 - Fixed deinterlaced method field not appearing in Quick Edit view
  • DSOF-17929 - Fixed multi transport UI not refreshing when re-ordering transports
  • DSOF-17903 - Fixed an issue where RenderStream workload doesn't start with 8 servers in a cluster
  • DSOF-17838 - Fixed Lens Delay value not affecting magenta grid overlay
  • DSOF-17833 - Fixed an issue where "Create Axes" in Ncam Screen Position Driver didn't work
  • DSOF-17820 - RenderStream - Fixed image parameters not working in dx11 mode
  • DSOF-17800 - Fixed an issue where floating point numbers in the GUI were not rounding to expected precision
  • DSOF-17798 - Fixed HAP video not showing up in Renderstream when played back in Unreal
  • DSOF-17733 - OmniCal: Fixed exposure time set within Setup Capture UI not holding
  • DSOF-17674 - d3 camera sensor width is now passed to Unreal
  • DSOF-17665 - Object selection outline is now hidden when 3d manipulators are switched off
  • DSOF-17590 - Fixed load weight in cluster assigners not behaving as expected
  • DSOF-17536 OmniCal: Fixed an issue where checking camera's displays the current camera view
  • DSOF-17465 - RenderStream Receive Health widget is now scrollable
  • DSOF-17377 - Fixed an issue where the List Editor still showed Colour Profile option in ACES mode
  • DSOF-17054 - Fixed an issue where a user was unable to Pin any external Recorders
  • DSOF-16904 - Fixed an issue where MultiChannelMappings were visible in other mapping widgets other than a RenderStream layer
  • DSOF-16457 - Fixed an issue where d3 would hang indefinitely after running colour calibration when non-outputting screens are part of the XR set
  • DSOF-9620 - Fixed an issue where the palette keywidget is missing after Default dropdown is expanded



Advisories
  • DSOF-18504 - Actors are regularly launching out of focus
    • Workaround: Not Known
    • Affects version: OS related



  • DSOF-18446 - Very large NotchLC content can cause d3 to lose access to GPU device
    • Workaround: Not Known
    • Affects Version: r18.1.9



  • DSOF-18015 - Intermittent issue - Heap Corruption causing Crash To Desktop
    • Workaround: Not known
    • Affects version: r19.0.1



  • DSOF-17848 - With "disableDmxPacketSendWait" on, lost sACN node on network still causes the project to slow to a halt.
    • Workaround: Add a static entry into the local systems ARP table.
      • Open an elevated commant prompt.
      • Find out MAC for IP, could use arp -a to see existing entries in local arp cache.
      • Run netsh interface ipv4 show interfaces to get a list of interface names.
      • Add a new entry to the ARP table netsh interface ipv4 add neighbors "<interface name>" <dest ip> <dest mac>
      • E.g netsh interface ipv4 add neighbors "Wi-Fi" 10.105.1.253 01-02-03-04-05-06
      • Remove entry like so; netsh interface ipv4 delete neighbors <dest ip>
      • Important - Remove entries when done or re-image system!!! Otherwise network issues may occur in the future sending the manually added IP addresses.
    • Affects version: r18.1.7



  • DSOF-17540 - Sequencing changes do not transfer to other machines in session when restoring a snapshot
    • Workaround: Not known
    • Affects version: r18.1.2



  • DSOF-17193 - Multi User Edit in UE requires preferred sync adapter to be set to a network adapter which is available to all machines
    • Workaround: Often the preferred sync adapter is set to the 25Gb network to facilitate faster sync. Unless all machines in the network have a 25Gb adapter, the preferred sync adapter must be set to another network adapter when multi user edit sessions are running in UE. The adapter can be changed back for when running sync tasks.
    • Affects version: r18.0



  • DSOF-17108 - Current NCAM data implementation used can exhibit unreliable packet timing
    • Workaround: Not known
    • Affects version: r18.0



  • DSOF-16935 - d3 cannot set SDI VFCs to Quad 4K 2SI 23.98, 24, 29.97 or 30Hz
    • Workaround: Not known
    • Affects version: r18.0.2



  • DSOF-16425 - Renderstream: When using MultiChannelMapping, only one spatial map w backplate is able to change position/rotation
    • Workaround: Not known
    • Affects version: r18



  • DSOF-16082 - Clustered Rendering: d3service requires restart for asset discovery to work on new Unity executables
    • Workaround: restart d3 service
    • Affects version: r18



  • DSOF-15553 - Feed mapping editor shows white screens in a notch layer on first use. In subsequent use it will then show the first pixel
    • Workaround: Not known
    • Affects version: r17.4.9



  • DSOF-15445 - Editor machines with a user account linked to an Microsoft Account can't join d3 sessions due to permissions errors
    • Workaround: Create a second local user account
    • Affects version: r17.4.8



  • DSOF-12837 - Looping within a section with loop play mode occasionally plays content of first frame in next section
    • Workaround: Not known
    • Affects version: r17.0.2



View the r20 release notes here.

View the r19.1.8 release notes here.

View the r19.1.7 release notes here.

View the r19.1.6 release notes here.

View the r19.1.5 release notes here.

View the r19.1.4 release notes here.

View the r19.1.3 release notes here.

View the r19.1.2 release notes here.

View the r19.1.1 release notes here.

View the r19.1 release notes here.

View the r19.0.1 release notes here.

View the r19 release notes here.

View the r18.1.9 release notes here.

View the r18.1.8 release notes here.

View the r18.1.7 release notes here.

View the r18.1.6 release notes here.

View the r18.1.5 release notes here.

View the r18.1.4 release notes here.

View the r18.1.3 release notes here.

View the r18.1.2 release notes here.

View the r18.1.1 release notes here.

View the r18.1 release notes here.

View the r18.0.6 release notes here.

View the r18.0.5 release notes here.

View the r18.0.4 release notes here.

View the r18.0.3 release notes here.

View the r18.0.2 release notes here.

View the r18.0.1 release notes here.

View the r18 release notes here.

View the r17.6.2 release notes here.

View the r17.6.1 release notes here.

View the r17.6 release notes here.

View the r17.5.4 release notes here.

View the r17.5.3 release notes here.

View the r17.5.2 release notes here.

View the r17.5.1 release notes here.

View the r17.5 release notes here.

View the r17.4.12 release notes here.

View the r17.4.11 release notes here.

View the r17.4.10 release notes here.

View the r17.4.9 release notes here.

View the r17.4.8 release notes here.

View the r17.4.7 release notes here.

View the r17.4.6 release notes here.

View the r17.4.5 release notes here.

View the r17.4.4 release notes here.

View the r17.4.3 release notes here.

View the r17.4.2 release notes here.

View the r17.4.1 release notes here.

View the r17.4 release notes here.

View the r17.3.8 release notes here.

View the r17.3.7 release notes here.

View the r17.3.6 release notes here.

View the r17.3.5 release notes here.

View the r17.3.4 release notes here.

View the r17.3.3 release notes here.

View the r17.3.2 release notes here.

View the r17.3.1 release notes here.

View the r17.3 release notes here.

View the r17.2.2 release notes here.

View the r17.2.1 release notes here.

View the r17.2 release notes here.

View the r17.1.3 release notes here.

View the r17.1.2 release notes here.

View the r17.1.1 release notes here.

View the full r17.1 release notes here.

Please contact support@disguise.one for feedback and issues

资源

获取最新的驱动程序、演示项目、PDF指南等,从而保持最新状态。如需当地语言支持,请发送电子邮件至support@disguise.one。

Resource Categories

    No third party resources were found.

    之前的版本

    您可在下方查找最新版本。如果需要旧版本或当地语言支持,请发送电子邮件至support@disguise.one。
    Previous Versions

    硬件

    为您的disguise服务器查找最新的OS映像、硬件指南和架构规范。 如需当地语言支持,请发送电子邮件至support@disguise.one。
    Server Model
